NVS-07 Mixer/Pugmill

Description

Next Ship date for new orders is 4/18/25.

FREE SHIPPING! in 48 US States

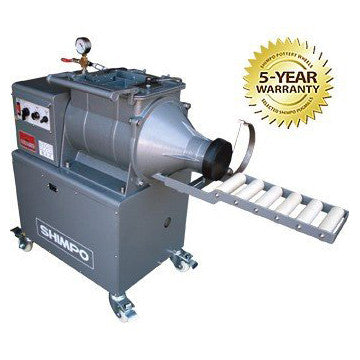

The NVS-07 De-Airing Pugmill Mixer features a powerful 1HP Motor for mixing and extruding, it is all stainless steel, giant hopper and good size nozzle (which also is compatible with the add on dies), the clay cutter and roller shelf is included and very easy access for cleaning and maintenance. Also a great feature is the dual safety system that includes a limit switch and overload system. All with a great price and a five year warranty!

Features

  • All stainless steel
  • Dual safety system; limit switch and overload system
  • Powerful 1 HP Motor; mixing and extruding
  • Includes clay cut-off wire and clay receiving table
  • Roller shelf included
  • Oil-free vacuum pump system
  • Large hopper and nozzle
  • Max batch capacity 45 lbs
  • Maintenance access; easy access for cleaning and maintenance
  • 5 year warranty

Specifications

  • Motor - 1 HP, gear driven
  • Power Source - 115 V / 60 Hz
  • Max Batch Capacity - 45 lbs *capacity will vary with clay density
  • Hopper Size - 8 1/2" x 11 1/2"
  • Vacuum Pump System - Air vacuum pump system (oil-free), vacuums in same chamber as clay mixing
  • Nozzle Diameter - 3 ½” diameter
  • Dimensions -  35" x 17" x 33" (47" long with roller shelf extended)
  • Weight - 310 lbs
  • Shipping Weight - 380 lbs
Product form

SKU: NVS-07 Pugmill/Mixer Shimpo

Free pickup in our shop(s)

$7,480.00$6,872.00

    Description

    Next Ship date for new orders is 4/18/25.

    FREE SHIPPING! in 48 US States

    The NVS-07 De-Airing Pugmill Mixer features a powerful 1HP Motor for mixing and extruding, it is all stainless steel, giant hopper and good size nozzle (which also is compatible with the add on dies), the clay cutter and roller shelf is included and very easy access for cleaning and maintenance. Also a great feature is the dual safety system that includes a limit switch and overload system. All with a great price and a five year warranty!

    Features

    • All stainless steel
    • Dual safety system; limit switch and overload system
    • Powerful 1 HP Motor; mixing and extruding
    • Includes clay cut-off wire and clay receiving table
    • Roller shelf included
    • Oil-free vacuum pump system
    • Large hopper and nozzle
    • Max batch capacity 45 lbs
    • Maintenance access; easy access for cleaning and maintenance
    • 5 year warranty

    Specifications

    • Motor - 1 HP, gear driven
    • Power Source - 115 V / 60 Hz
    • Max Batch Capacity - 45 lbs *capacity will vary with clay density
    • Hopper Size - 8 1/2" x 11 1/2"
    • Vacuum Pump System - Air vacuum pump system (oil-free), vacuums in same chamber as clay mixing
    • Nozzle Diameter - 3 ½” diameter
    • Dimensions -  35" x 17" x 33" (47" long with roller shelf extended)
    • Weight - 310 lbs
    • Shipping Weight - 380 lbs
